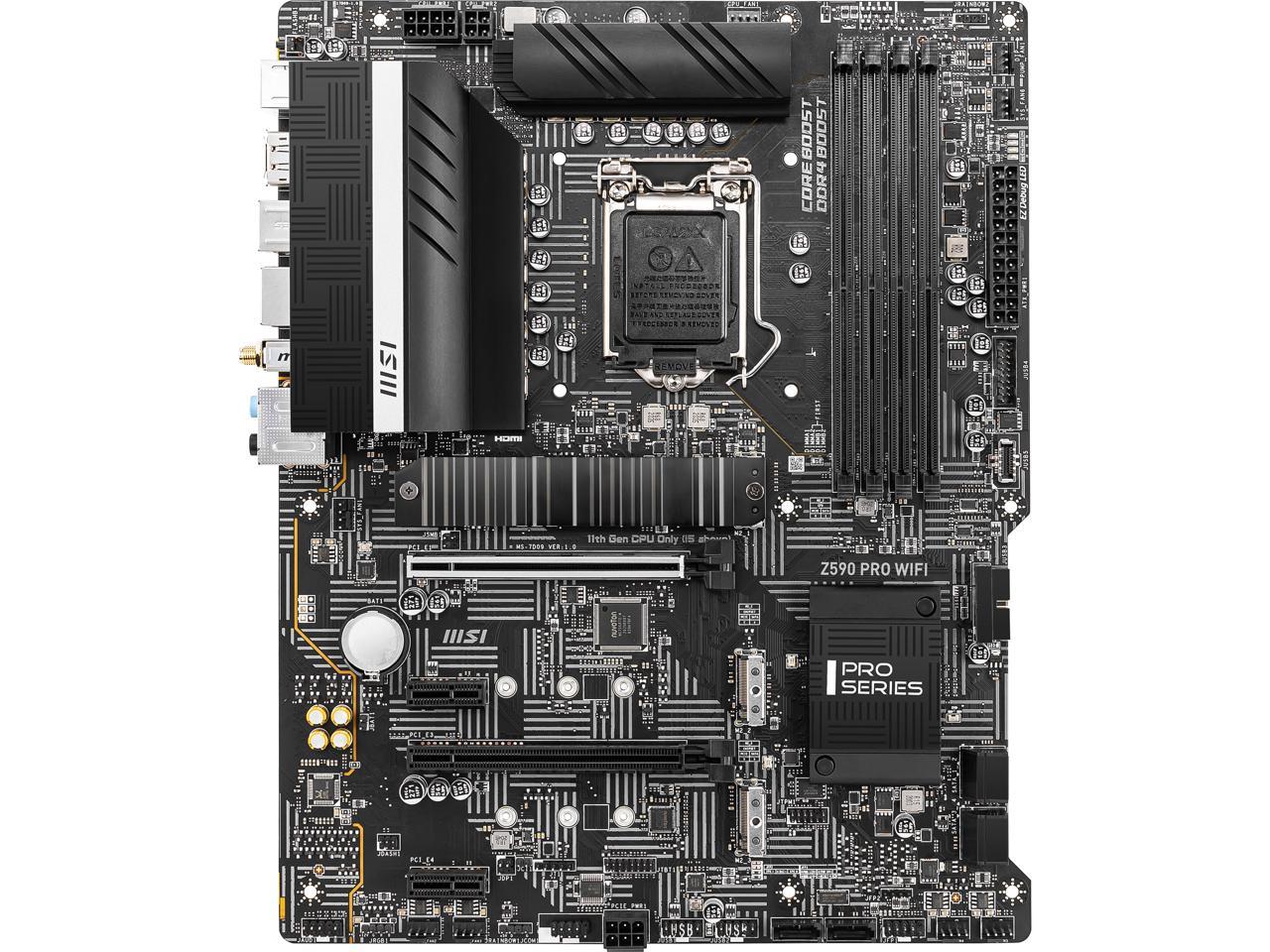

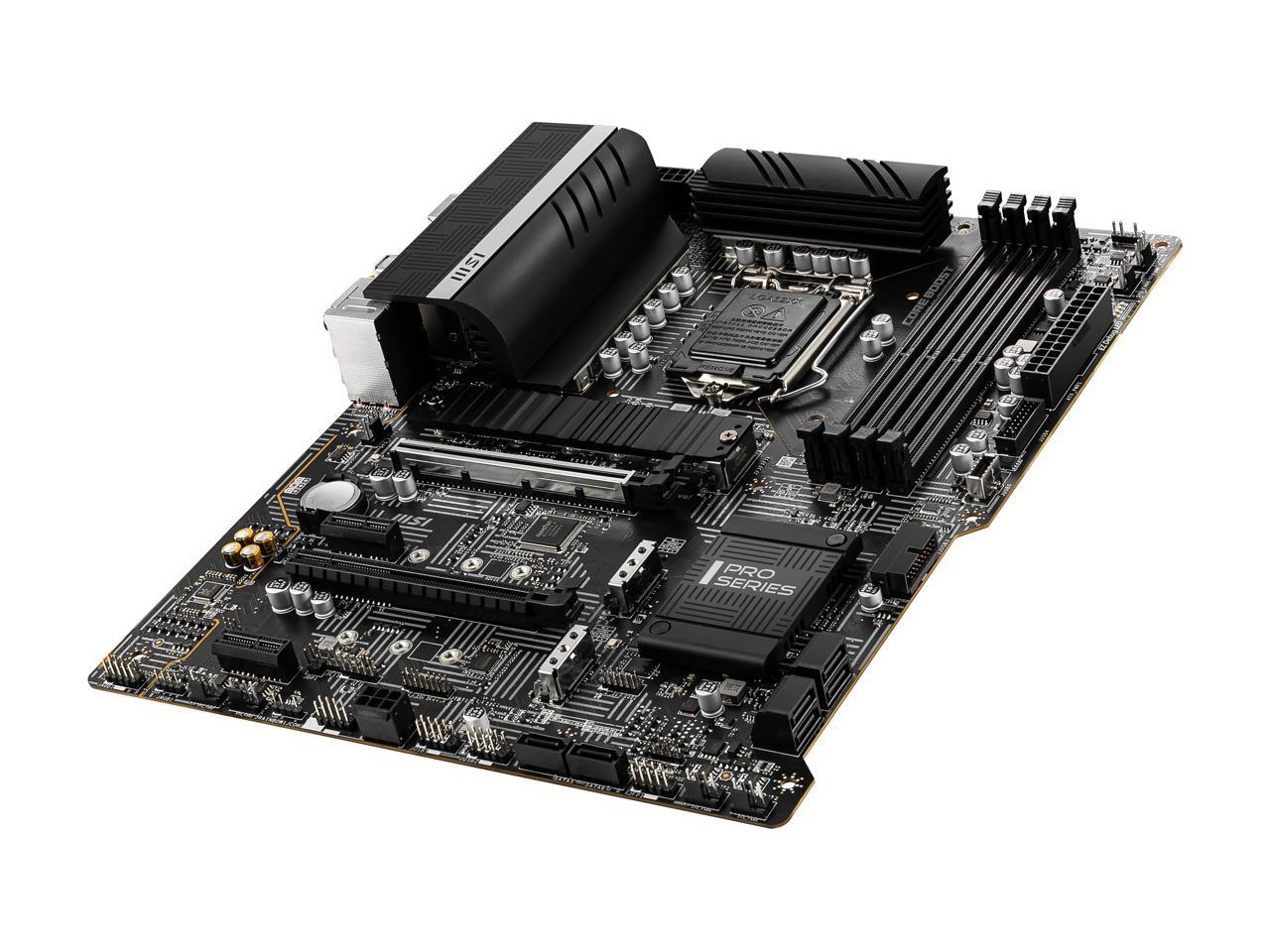

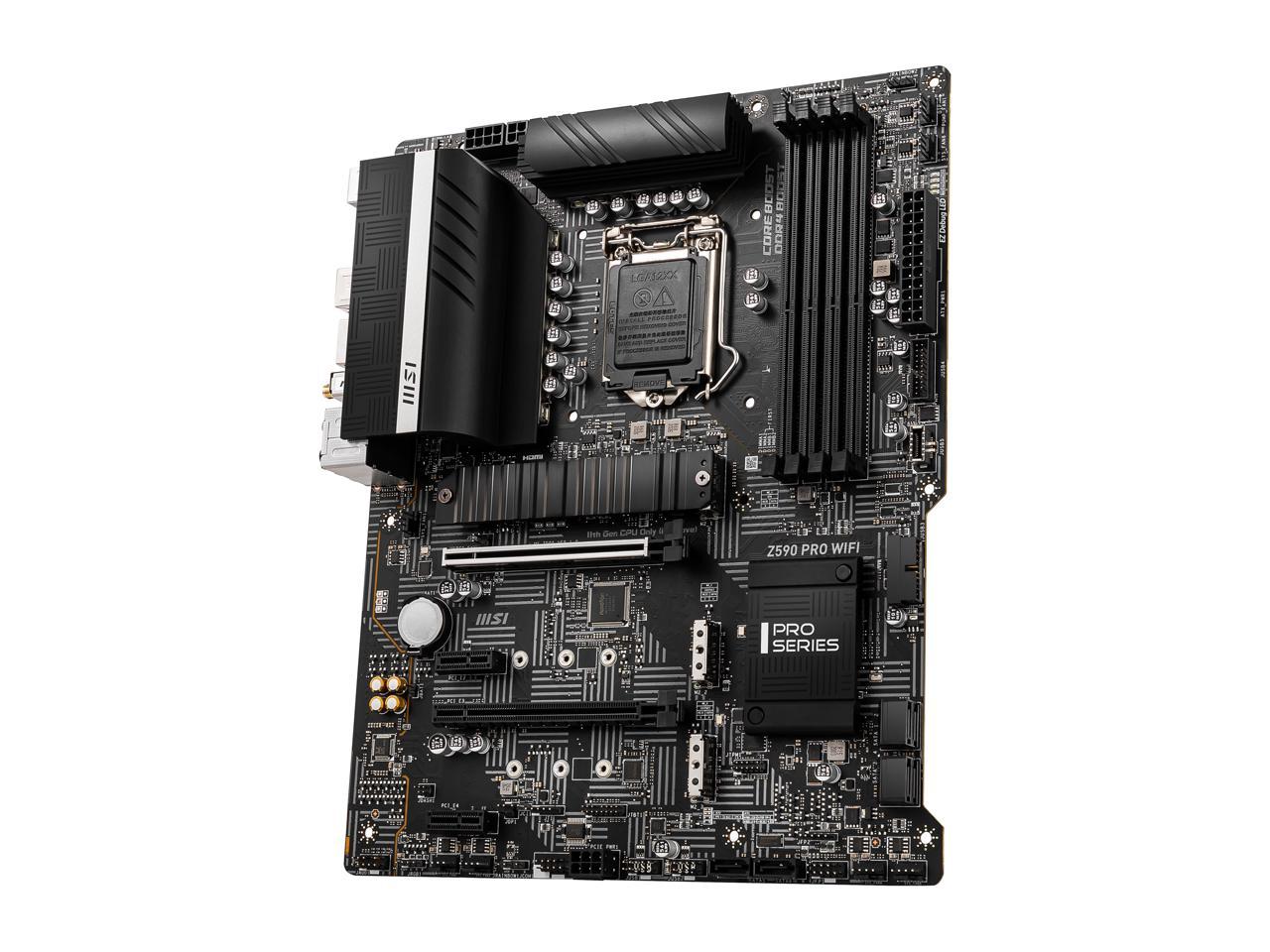

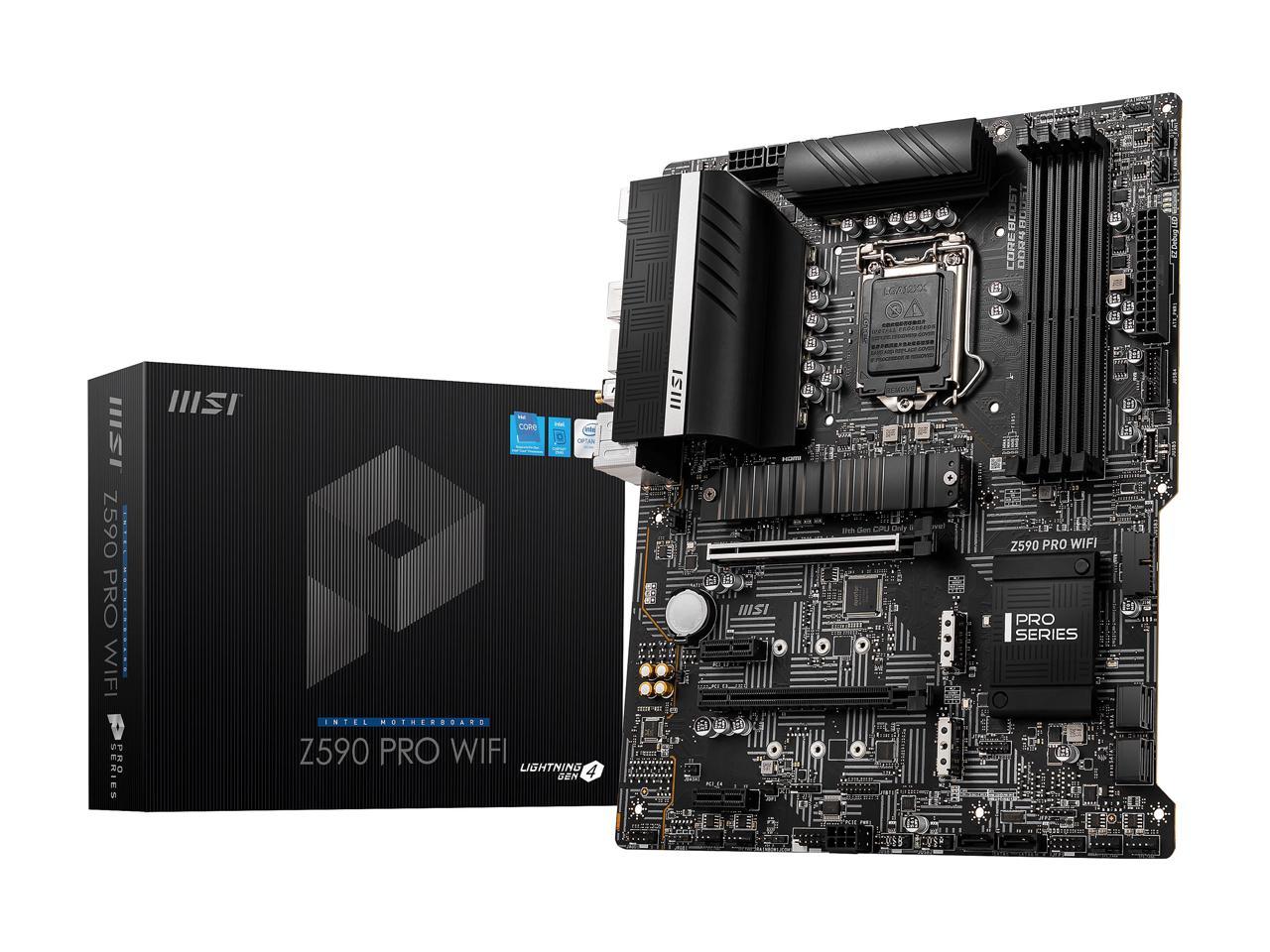

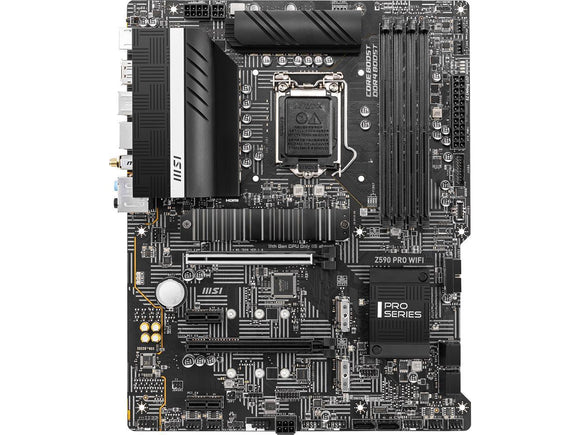

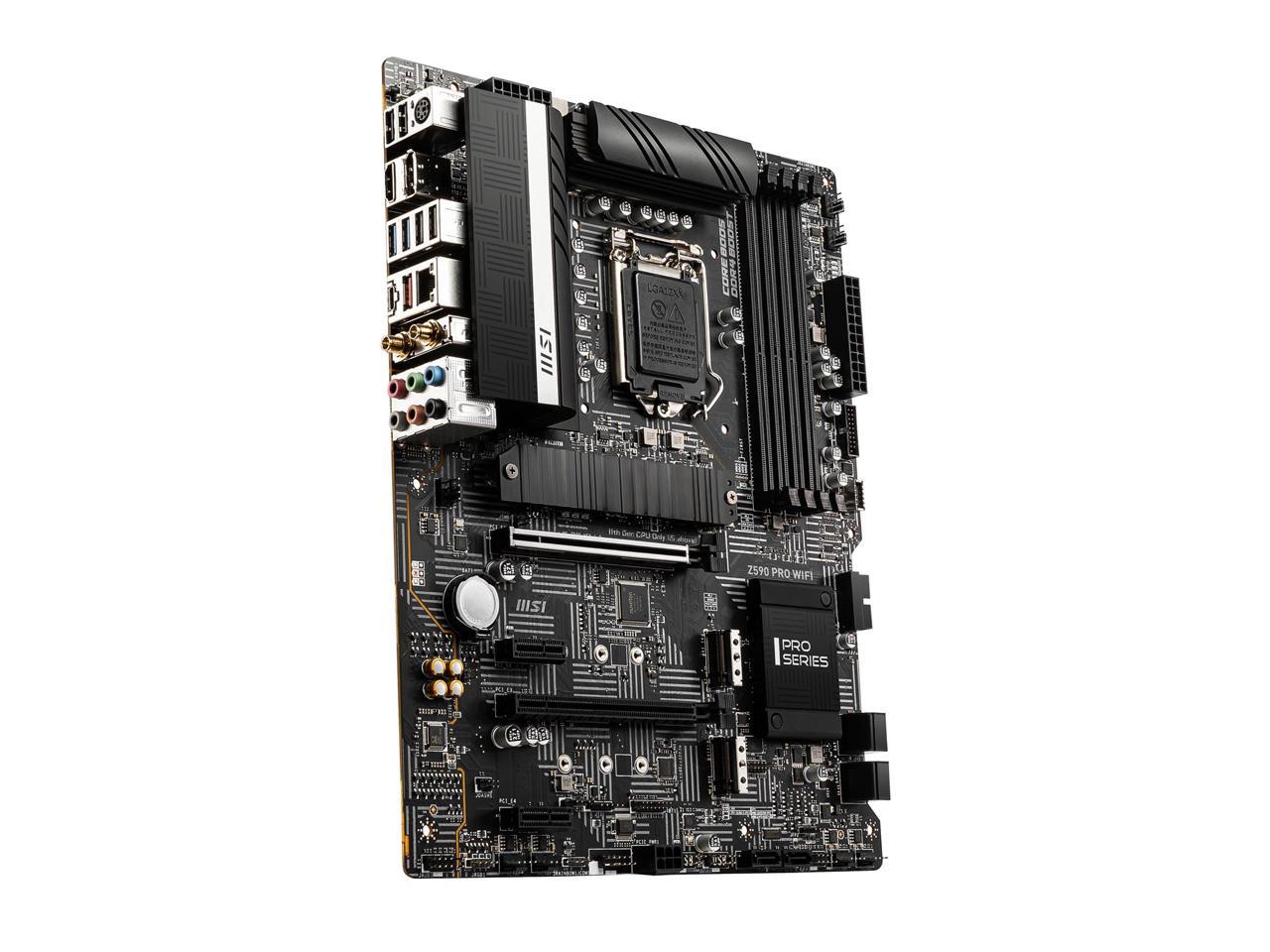

MSI Z590 PRO WIFI LGA 1200 Intel Z590 SATA 6Gb/s ATX Intel Motherboard

MSI Z590 PRO WIFI LGA 1200 Intel Z590 SATA 6Gb/s ATX Intel Motherboard

$300.00
Unit price per

Model
Brand	MSI
Model	Z590 PRO WIFI

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium Gold / Celeron processors

Chipsets
Chipset	Intel Z590

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4×288pin
Memory Standard	DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR) DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 1DPC 2R Max speed up to 4700+ 2DPC 1R Max speed up to 4400+ 2DPC 2R Max speed up to 4000+
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16* * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	2 x PCI Express 3.0 x1

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	3 x M.2 slots (Key M) M2_1 slot (from CPU) 1: Available only on 11th Gen Intel CPU Supports up to PCIe 4.0x4 Supports 2242/2260/2280/22110 storage devices M2_2, M2_3* slots (from Z590 chipset): Support up to PCIe 3.0x4 Support up to SATA 6Gb/s Support 2242/2260/2280 storage devices * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. ** SATA5 & SATA 6 will be unavailable when installing M.2 SSD in the M2_3 slot.
Intel Optane Ready	Intel Optane Memory Ready* * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel Wi-Fi 6E AX210 Supports 802.11a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

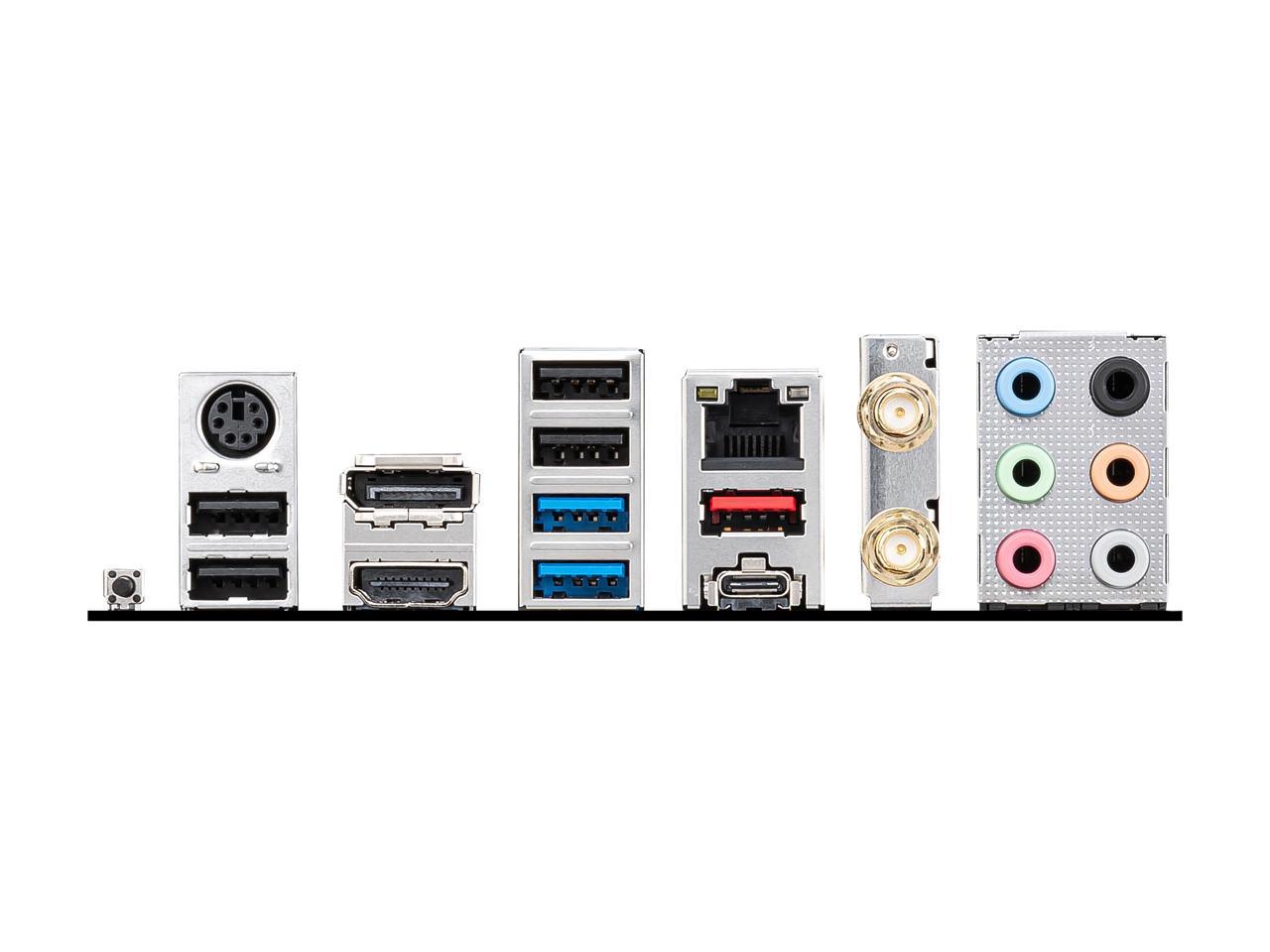

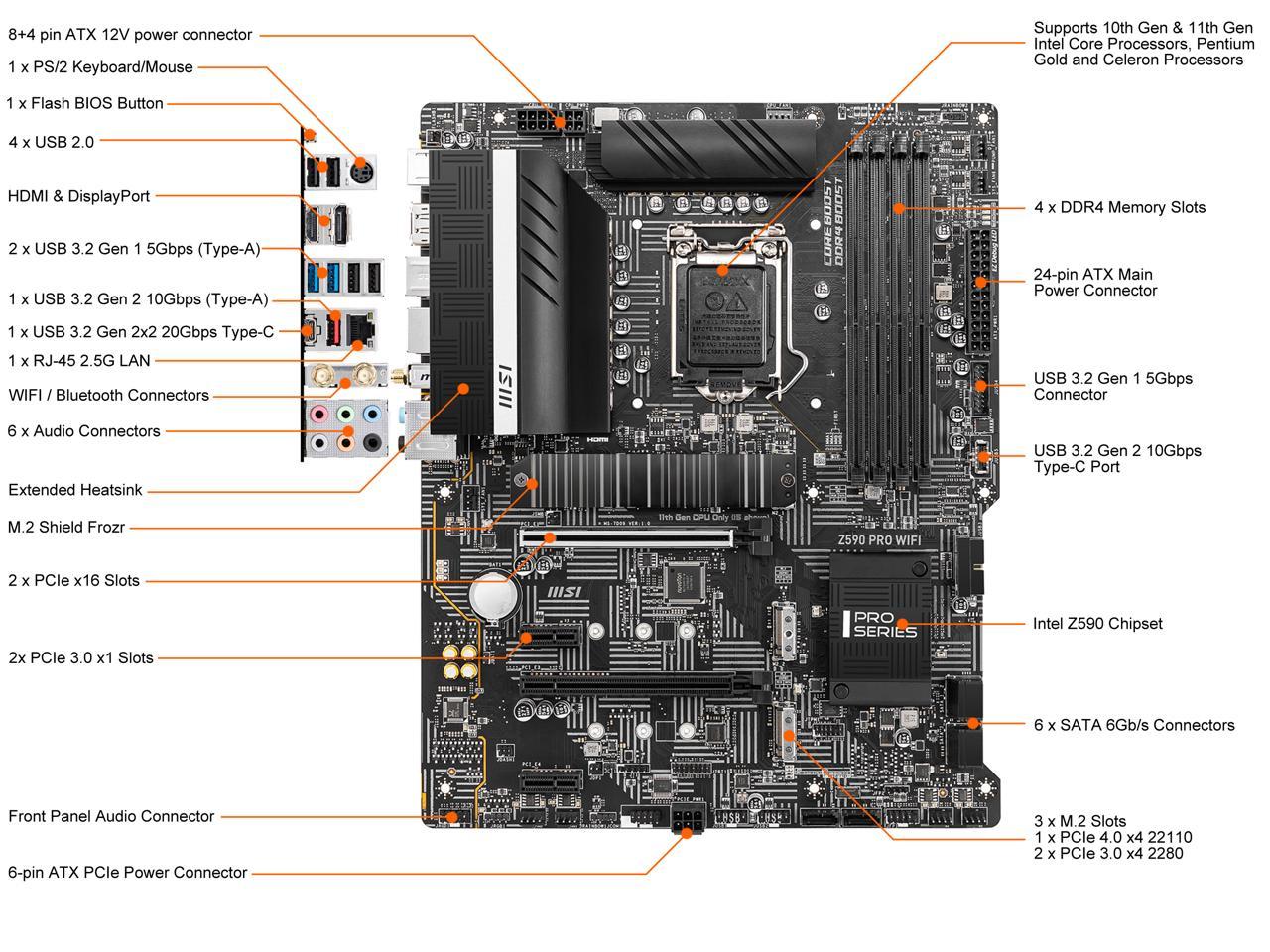

Back I/O Ports	1 x Flash BIOS Button 1 x PS/2 Keyboard/Mouse 6 x Audio Connectors 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen 2x2 20Gbps Type-C 2 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x USB 3.2 Gen 2 10Gbps (Type-A) 4 x USB 2.0 1 x LAN WIFI / Bluetooth Connectors

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 6-pin ATX PCIe power connector 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x TPM module connector 1 x Serial port connector 1 x Tuning controller connector 1 x TBT connector (Supports RTD3)

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Windows Compatibility
Windows 11	Supported

Features
Features	Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5333(OC) MHz Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds Audio Boost: Reward your ears with studio grade sound quality Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire

Additional Information
Date First Available	February 09, 2021
