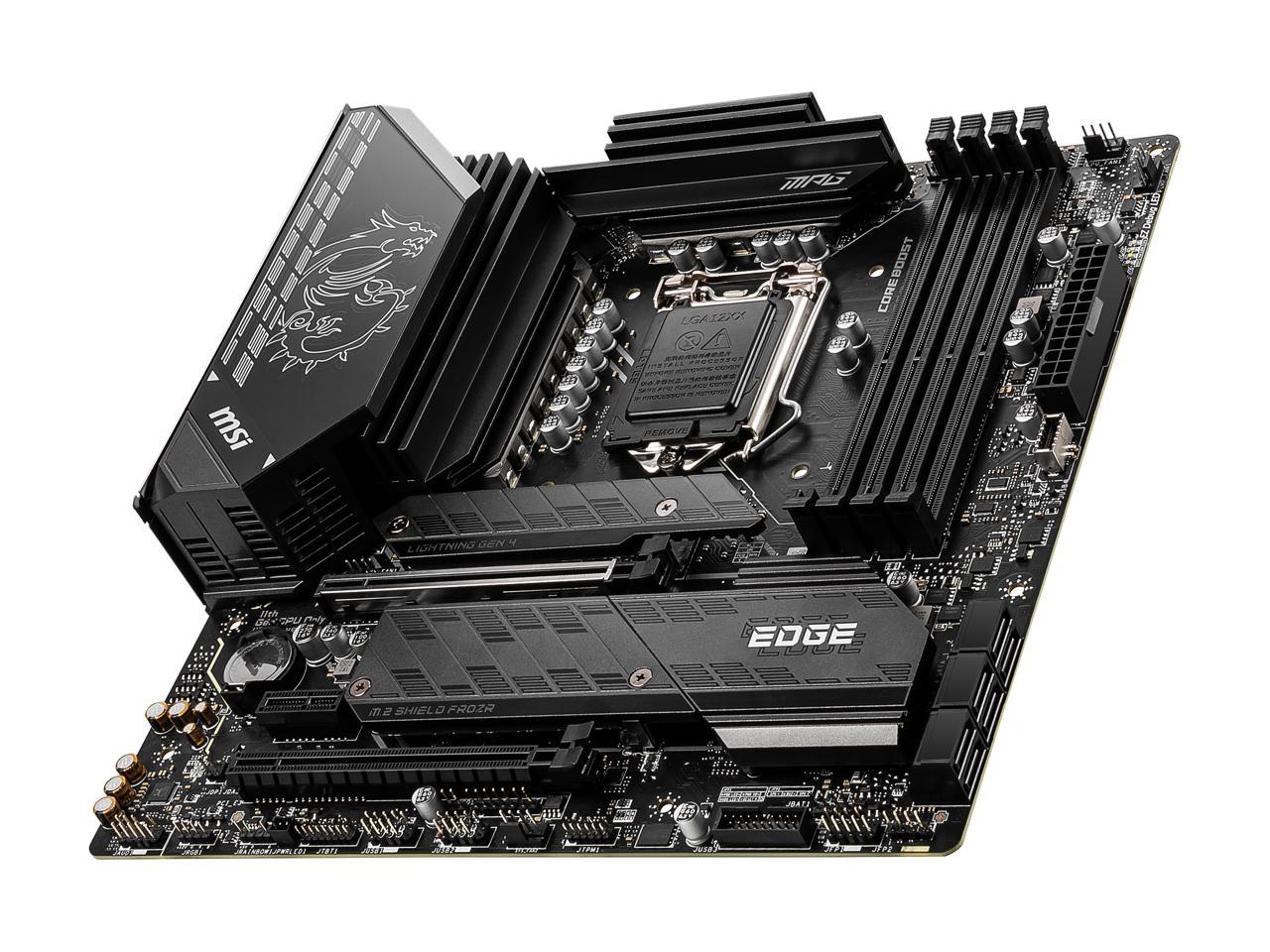

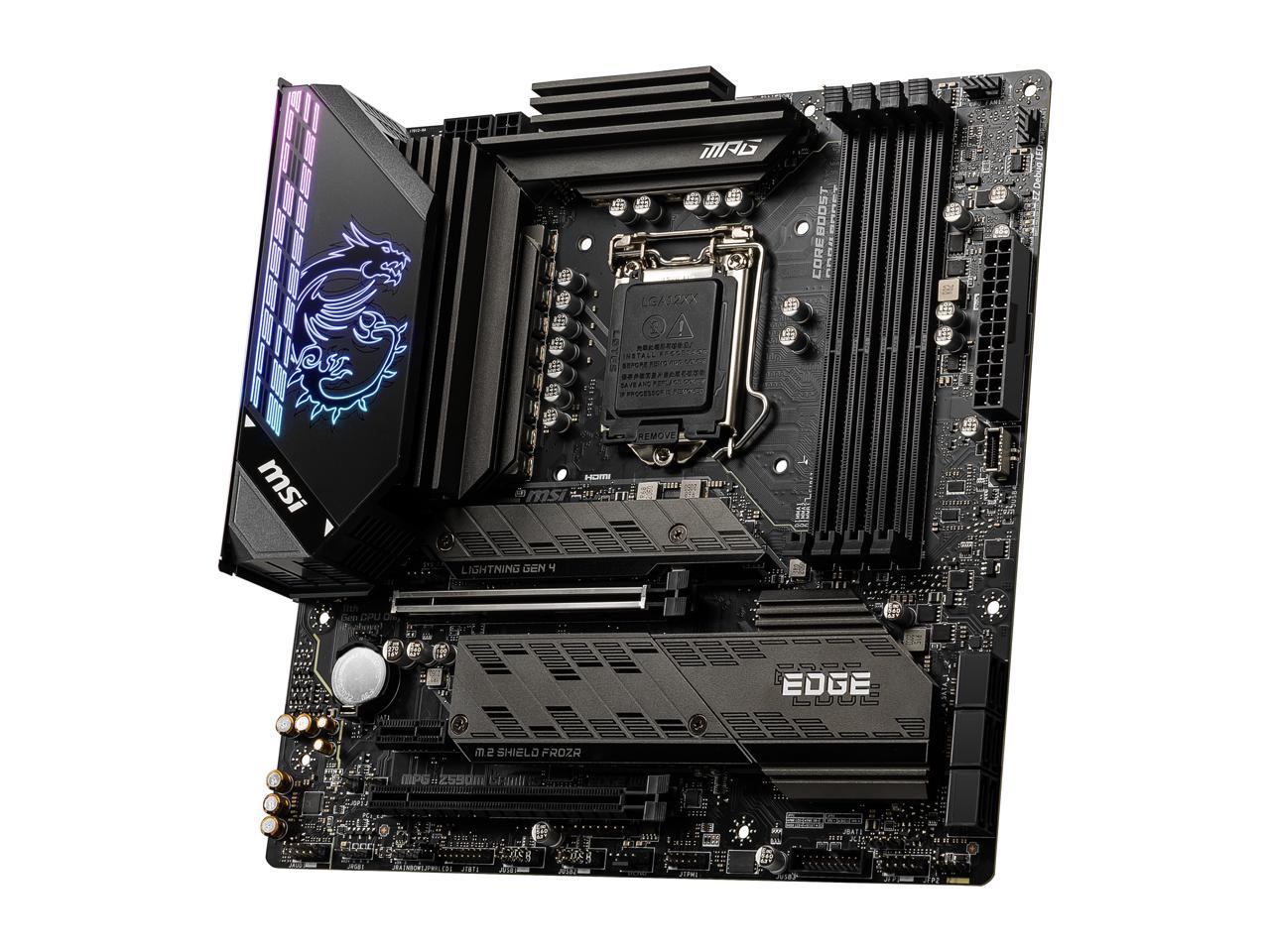

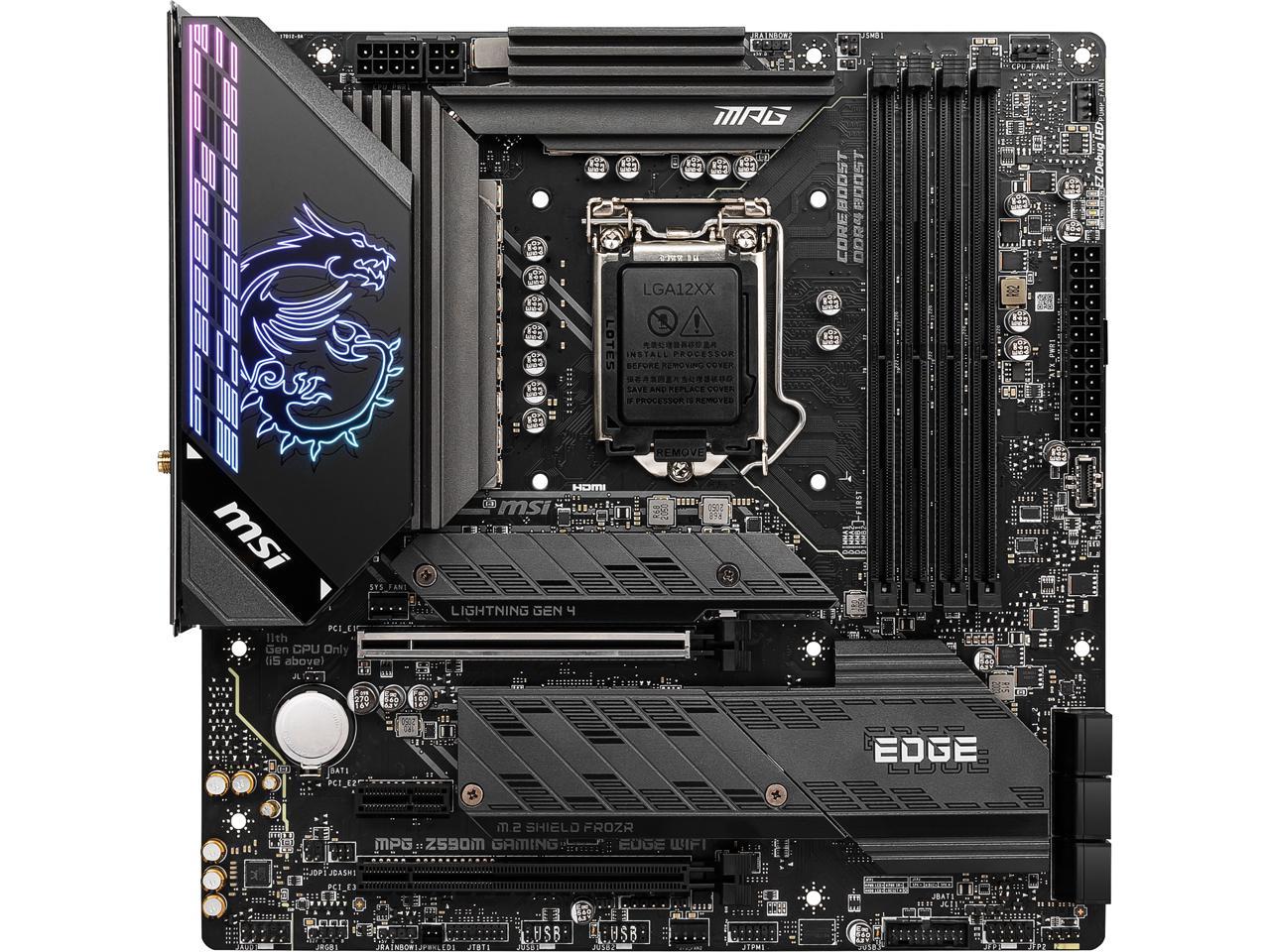

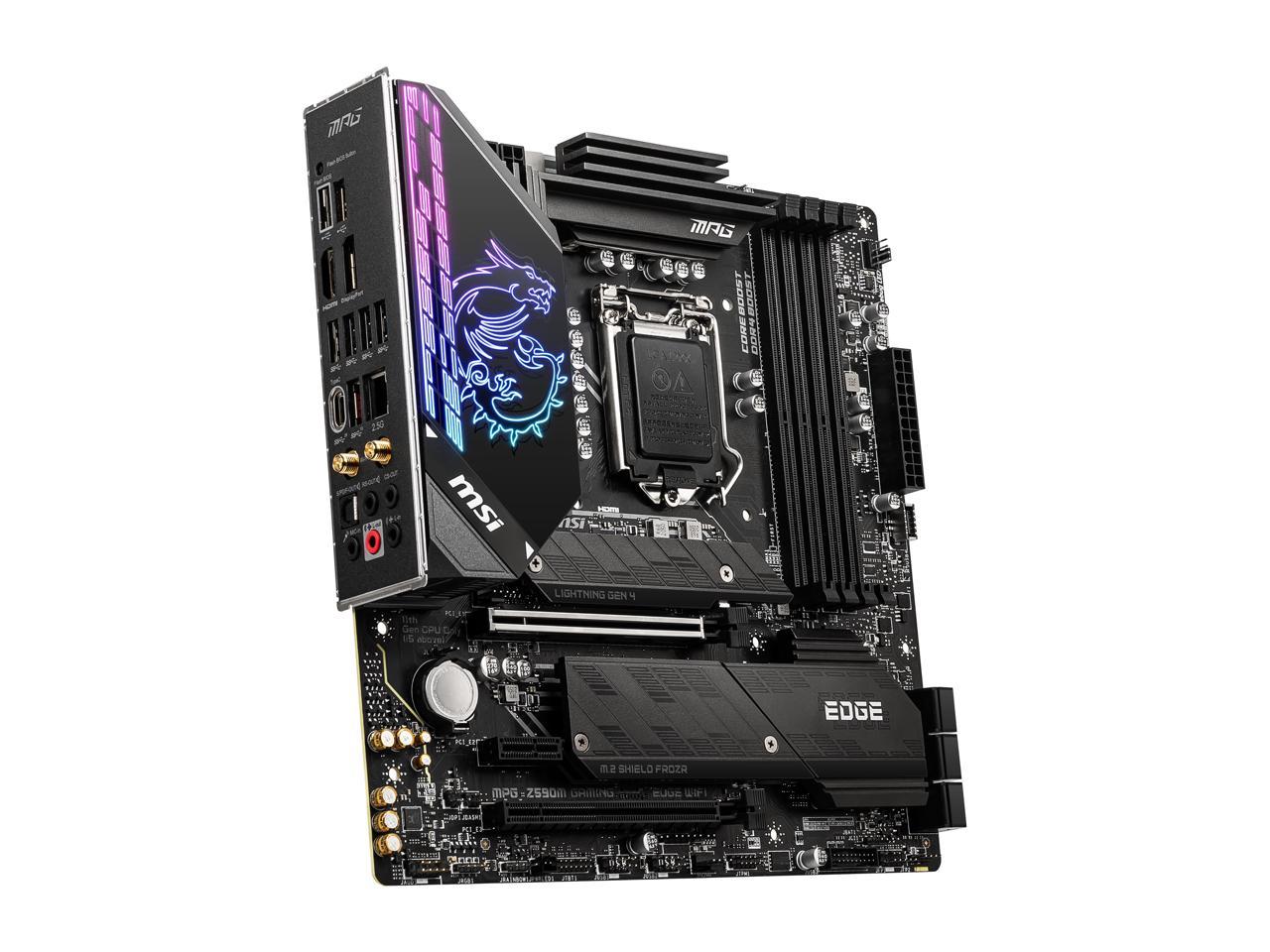

MSI MPG Z590M GAMING EDGE WIFI LGA 1200 Intel Z590 SATA 6Gb/s Micro ATX Intel Motherboard

MSI MPG Z590M GAMING EDGE WIFI LGA 1200 Intel Z590 SATA 6Gb/s Micro ATX Intel Motherboard

$0.00
Unit price per

Model
Brand	MSI
Model	MPG Z590M GAMING EDGE WIFI

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium Gold / Celeron processors

Chipsets
Chipset	Intel Z590

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4×288pin
Memory Standard	DDR4 1R 3200 / 2933 / 2666 / 2133 for 11th Gen Intel CPU (by JEDEC & POR) DDR4 1R 2933 / 2666 / 2133 for 10th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 1DPC 2R Max speed up to 4700+ 2DPC 1R Max speed up to 4400+ 2DPC 2R Max speed up to 4000+
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16* * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	1 x PCIe 3.0 x1

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	2 x M.2 slots (Key M): M2_1 slot (From CPU): Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/2260/2280 storage devices M2_2 slot (From Z590 Chipset): Support up to PCIe 3.0 x4 Support up to SATA 6Gb/s* Supports 2242/2260/2280 storage devices Intel Optane Memory Ready** * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. ** Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel Wi-Fi 6E AX210 802.11a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

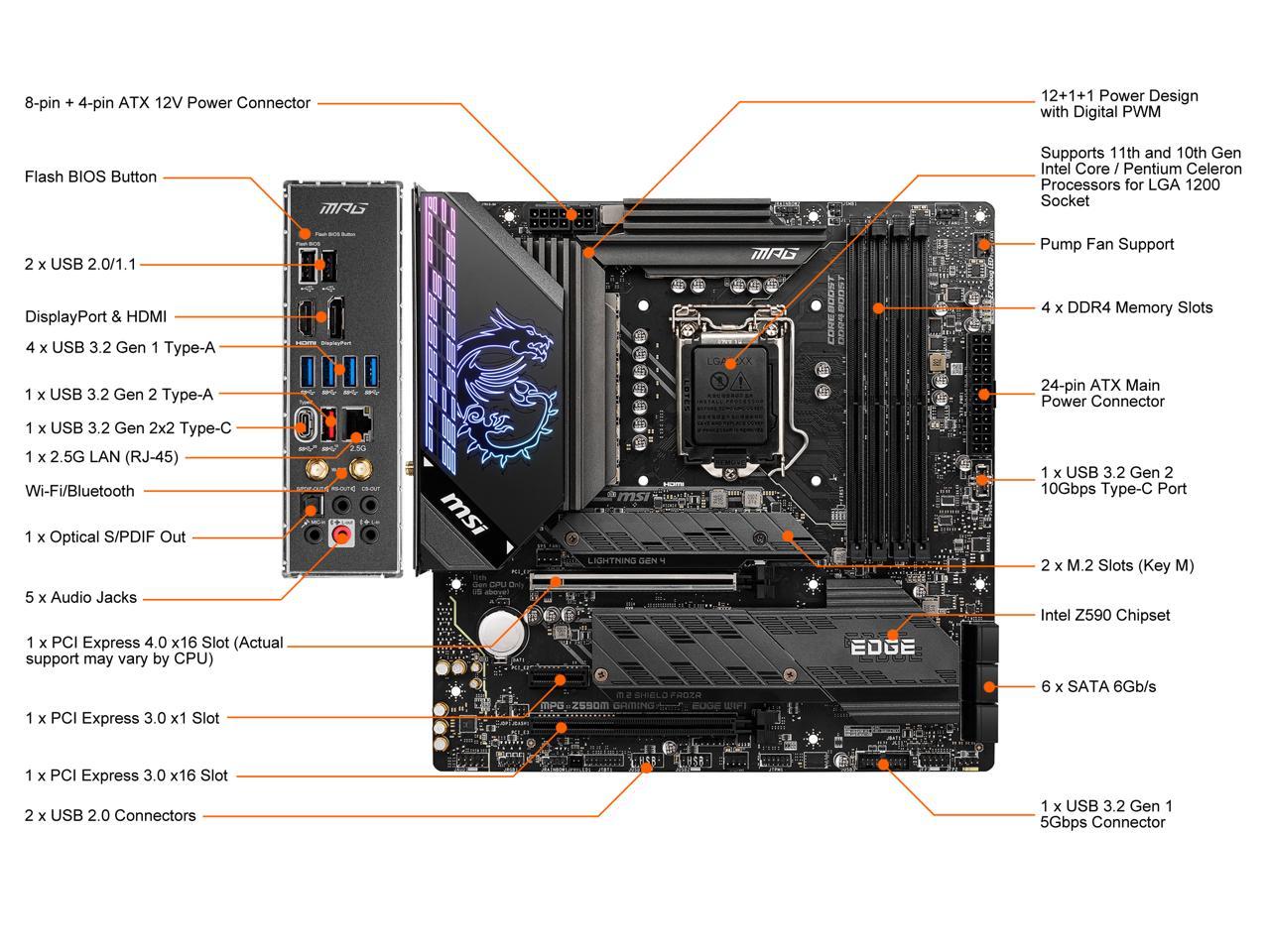

Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2x2 Type-C 2 x USB 2.0/1.1 4 x USB 3.2 Gen 1 Type-A 1 x Optical S/PDIF Out 5 x Audio Jacks Wi-Fi/Bluetooth Flash BIOS Button

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 2-pin system fan connectors 1 x Front panel audio connectors 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper 1 x Tuning Controller connector 1 x TBT connector (supports RTD3)

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Windows Compatibility
Windows 11	Supported

Features
Features	Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket Supports DDR4 Memory, up to 5333(OC) MHz Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Enhanced Power Design: 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 2 x M.2 Shield Frozr are built for high performance system and non-stop gaming experience MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Additional Information
Date First Available	June 07, 2021
